ACCEL® Panel Program




Drive more sales with our new ACCEL® Panel Program designed to deliver top quality control solutions in a quick turn-around time for simplex, duplex and triplex water/wastewater applications. We’ve pre-engineered popular base models with select options that are quoted and delivered with accelerated lead times:

  • Same day quotes

  • 24-hour submittals (includes BOM, layout drawing and electrical schematic)

  • 10-day build-to-ship

Our new user-friendly ACCEL® self-service quote tool provides instant pricing for your control solution. We have standardized panel model schemes for easy identification and reorder. And we offer the best customer service and technical support in the industry.

Features

Base Model Features

  • Single phase 115V, 200V, and 230V
  • Three phase 208V, 230V, 460V, and 575V

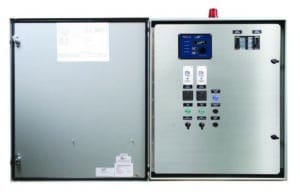

  • NEMA 4 painted steel enclosure – single door wall mount

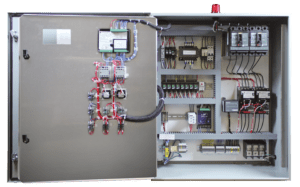

  • Inner door with 22mm Pump Hand-Off-Auto switches and Pump Run indicators
  • Multitap transformer for 208/240/480 Volts (three phase models only)
  • IEC motor starting devices up to 32 full load amps
  • Pump ETM’s
  • Alarm Package (includes flashing beacon, audible horn, Silence/Test switches, and Form C auxiliary contacts)
  • cUL 508 Listed
  • Two-year limited warranty

Specifications

Select Options

  • NEMA 4X 304 stainless steel or NEMA 4X fiberglass enclosure
  • Indicators mounted on enclosure door
  • IEC rated motor starters up to
  • 65 full load amps or NEMA rated motor starters up to 45 full load amps (NEMA for three phase models only)
  • User friendly pump controllers
  • Float-based control for pump up or pump down applications*
  • 4-20mA level input control for pump up or pump down applications; includes float backup*
  • Redundant off with alarm activation
  • Seal failure and thermal cutout notification
  • Pump Run auxiliary contacts
  • Pump Fail auxiliary contacts
  • Power Fail auxiliary contacts
  • ETM/Event Counter Combination Unit
  • Lightning arrestor
  • Anti-condensation heater
  • Phase/Voltage monitor
  • UL698A intrinsically safe circuit extensions into hazardous location for float on transmitter based requirements

To learn more, please contact panelquote@sjeinc.com.

*Floats and level transmitters must be ordered separately.
