CABLE WEIGHT
- Provides accurate pivot point for suspended float switches
- Clips to cable
CABLE CLAMP ASSEMBLY
- Includes cable clamp and stainless hose clamp for anchoring float cable
- Secures 18/16 gauge, 14 gauge and 12 gauge cable in vertical direction

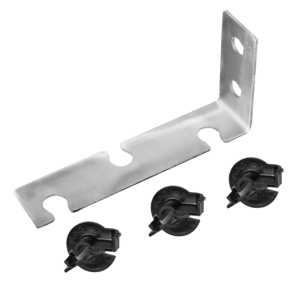

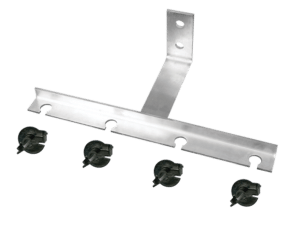

FLOAT BRACKET
- Six Float Bracket supports 1-6 floats
- Four Float Bracket supports 1-4 floats
- Can be directly mounted to wall or used with wall mounting device
- Provides convenient location to stow excess float cord
- Supplied with UL Recognized cord strain relief connectors
PIPE MOUNTING BRACKET
- Secures discharge pipe to basin wall
- Clamps directly to 2” PVC discharge pipe
VERTICAL REED SWITCH
- Control differential: .375 inch (1 cm)
- Maximum angle from vertical: 5°
- Electrical:
- 250 mAmps, 12-125 VAC, 50/60 Hz
- 500 mAmps, 6-12 VDC, 50/60 Hz
ELAPSED TIME METER
- Plugs into switched outlet or piggy-back switch of plugger control panel. Unit must be placed inside an enclosure.
- Screws and mounting adhesive included
