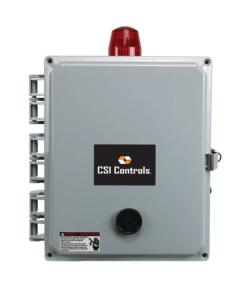

Fusion™ Economy Control Panel

Single Phase, Simplex Demand Float Control System for Pumping Applications

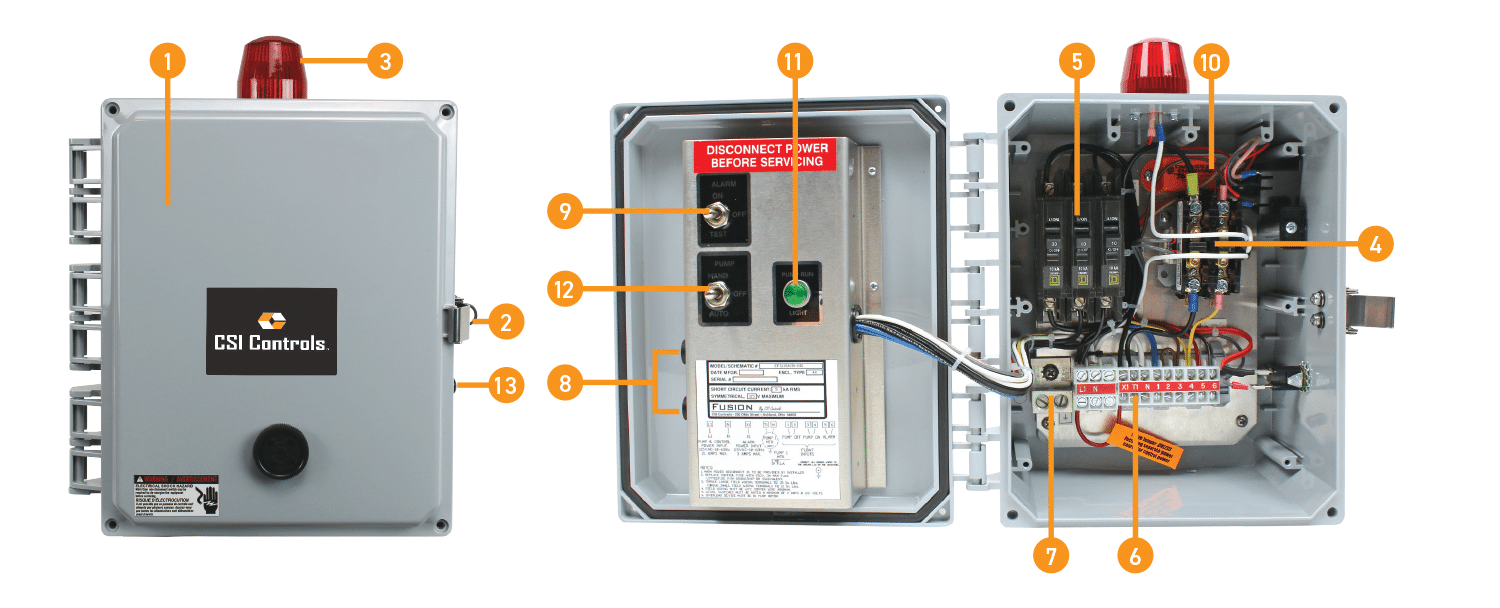

fusion economy control panel diagram
The Fusion™ Economy Single Phase Simplex control panels utilize a traditional relay logic component-style design. Applications include sump and sewage basins, septic tanks, aeration systems, cisterns, atmospheric storage tanks, chemical solution tanks, and more.

COMPONENTS

  1. NEMA 4X enclosure rated for indoor or outdoor use
  2. Lockable latch for added safety
  3. 360° red alarm beacon for visual alert
  4. Magnetic motor contactor controls the pump motor load by switching the electrical lines
  5. Circuit breakers provide pump and control/alarm disconnect and branch circuit protection
  6. Terminal strip easy field wiring of incoming power, floats, and pump
  7. Ground lugs
  8. Control circuit and alarm circuit fuses easy access touch safe fuse replacement
  9. Alarm Arm-Off-Test switch provides method to test alarm circuit or disable the alarm
  10. Alarm Flasher provides alarm flashing circuitry
  11. Green Pump Run light provides indication when pump is called to run
  12. Pump Hand-Off-Auto switch provides manual pump control
  13. External alarm silence button to silence the audibile alarm

Features

Features:
  • NEMA 4X engineered thermoplastic enclosure with lockable latch
  • Flashing red 360° alarm beacon with horn and test/silence switch.
  • Pump Hand-Off-Auto switch to manually activate pump, set in automatic float level control, or disable the pump operation
  • Pump Run light to provide visual notification when the pump is called to run
  • Includes easy access fuses
Options:
  • Heavy duty increases the circuit breakers and wire gauge HD1 12-18FLA, HD2 18-24FLA
  • Heat sensor terminals
  • Auxiliary alarm contacts
  • Floats various configurations

Specifications

VOLTAGE SUPPLY:

  • Pump: 115 VAC or 230 VAC 50/60 Hz 1Ø
  • Control/Alarm: 115 VAC 60 Hz 1Ø

ENCLOSURE:

  • 10 x 8 x 6 inch (25.4 x 20.3 x 15.2 cm)
  • NEMA 4X ultraviolet stabilized thermoplastic rated for indoor/outdoor use with mounting feet

INNER DOOR:

  • molded thermoplastic

LOCKING LATCH:

  • stainless steel, padlockable

FLOAT CONTROL VOLTAGE:

  • 115 VAC

MOTOR STARTER:

  • magnetic motor contactor

PUMP AMPS:

  • 0-12 Amps, 12-18 Amps, 18-24 Amps

ALARM HORN:

  • 83-85 decibel rating

FLASHING RED LED ALARM LIGHT 360°
