Single Phase Grinder Pump Control
The SPF Series™ Grinder simplex control panel is designed to control a single phase 3-wire grinder pump in level control applications. This control panel can be operated using a level transmitter or float switches. The pump will operate based on the level sensor measurement and controller settings. If a high-level alarm condition occurs, it activates the audible/visual alarm. In addition, it can detect high and low amp conditions during pump run and shut the pump off to protect it from damage. This panel has built-in Start and Run capacitors with models available for a variety of pumps or can be ordered without capacitors for 2-wire pump applications.

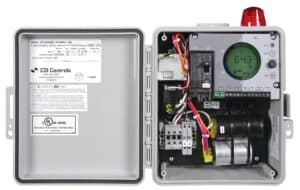

COMPONENTS
- Enclosure measures 10 x 8 x 4 inches (25.4 x 20.32 x 10.16 cm) for indoor or outdoor use with integral padlockable latch for added safety
- Pump run green LED indicator
- Pump test switch for manual control of the pump
- Menu rotary encoder/selector switch
- Menu ESC button
- Auxiliary alarm contacts
- Seal fail and thermal cutout input
- LCD display
- Ground lug
- Circuit breaker
- Run capacitor
- Start capacitor
- Start Relay
*Note: CSI Controls will warranty motor start kit components supplied by CSI Controls for one year.
Features
- Level transmitter or float switch control
- LCD display with bar graph
- Tank level monitoring
- Float switch status
- Pump amps monitoring
- Run indication
- Pump run time
- Pump run cycles
- Pump GPM flow rate
- Pump protection
- Seal fail monitoring
- Thermal cutout
- Overload
- Dry run
- Max run
- Rapid cycle
- Adjustable level set points
- Gallons per day pumped
- Pump run on high float alarm
- Float out of sequence monitoring
Specifications
Input Voltage: Single Phase, 240 VAC, 60 Hz
Pump Ratings: Singl Phase, 1-2 HP, 3-wire (NC model suitable for 2-wire)
Operating Temperature: 14°F to 122°F (-10°C to 50°C)
Enclosure: 10 x 8 x 4 inch (25.4 x 20.32 x 10.16 cm) Padlockable NEMA 4X (ultraviolet stabilized thermoplastic with integral mounting feet for outdoor or indoor use)
Electronic Overload Range: 5-20A
Pump Circuit Breaker: 25A
Control/Alarm Fuse Rating: 1A, 250V
Auxiliary Alarm Contacts: N.O. 1 amp, 120 VAC Max
Inputs: 3 float switches, 4-20mA level transmitter, seal fail, thermal cutout
