Single Phase, Duplex Motor Alternating Pump Control with Override
The SPF Series™ duplex panel is designed to alternately control two 120, 208 or 240 VAC single phase pumps in water and sewage installations. The alternating action equalizes pump wear. In addition to the alternating pump control, this system provides override control should either pump fail. If an alarm condition occurs, an alarm switch activates the audible/visual alarm system. The compact design (10” x 8” x 4”) is ideal for residential applications. Universal pump voltage and control/alarm power allow the SPF Series™ panel to handle three voltages (120/208/240V). The innovative internal design of components and integral mounting tabs make installation quick and simple. Includes integral padlockable latch for added safety.

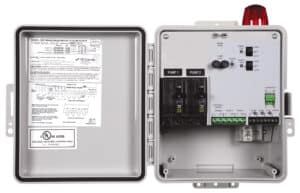

COMPONENTS
- Enclosure measures 8 x 6 x 4 inches (20.32 x 15.24 x 10.16 cm) NEMA 4X (ultraviolet stabilized thermoplastic) for indoor or outdoor use
- Integral padlockable latch for added safety
- Integral mounting feet
- Power relay controls pump by switching electrical lines (Not shown)
- HOA switch for manual pump control
- Green Pump Run indicator lights
- Field wiring terminal blocks
- Control/Alarm fuses
- Control/Alarm Power indicator
- Ground lug
- Circuit breakers provide pump disconnect and branch circuit protection
- Float Status indicator lights (Stop, Lead and Lag float status) (Float/Control Voltage: 12 VDC)
- Elapsed Time Meter (optional – not shown) provides individual pump run-time in hours
- Red LED beacon provides 360° visual check of alarm condition
- Alarm horn provides audible warning of alarm condition (85 to 90 decibel rating) (Not shown)
- Exterior alarm Test/Silence push button switch allows horn and light to be tested and horn to be silenced in an alarm condition; alarm automatically resets once alarm condition has been cleared (Not shown)
- Auxiliary Alarm Contacts are provided for signaling an external device (Form C, 5 amp, 120V max)
Specifications
Voltage Supply:
- Pump: 120/208/240 VAC, 50/60 Hz
- Control/Alarm: 120/208/240 VAC, 50/60 Hz
Enclosure: 10 x 8 x 4 inch (25 x 20 x 10 cm), Padlockable NEMA 4X (ultraviolet stabilized thermoplastic with integral mounting feet for outdoor or indoor use)
Float Control Voltage: 12 VDC
Pump Amps: 0-12 Amps; 9-20 Amps
Auxiliary Alarm Contacts: Form C, 5 amp, 120 VAC Max
