RK Series™ Single Phase Duplex Capacitor Start/Run

Single Phase, Duplex Grinder with External Start/Run Capacitors

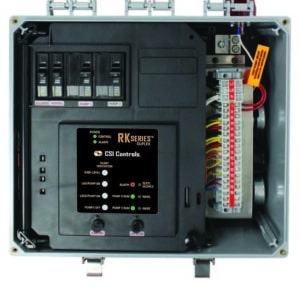

rk series single phase duplex capacitor start/run control panel diagram
The RK Series™ Single Phase Duplex Capacitor Start/Run panel is designed to control two 230 VAC single phase pump with external starting components in water and sewage installations. The protective inner door features panel operating status indicators, control buttons and provides access to the pump and control circuit breakers.

COMPONENTS

  1. NEMA 4X enclosure rated for indoor or outdoor use
  2. Lockable latches for added safety
  3. 360° red alarm beacon for visual alert
  4. IEC motor contactors control the pump motor load by switching the electrical lines
  5. IEC overloads to provide pump motor current overload protection
  6. Circuit breakers provide pump and control/alarm disconnect and branch circuit protection
  7. Capacitor kits includes start relay, start capacitor, run capacitor
  8. Terminal strip easy field wiring of incoming power, floats, and pumps
  9. Ground lugs
  10. Molded inner door protects from high voltage, and mounting location for indicators, control buttons, and controller circuit board
  11. Green LEDs provide power indication for control and alarm circuit power
  12. Red LEDs provide indication when either control or alarm fuse is blown
  13. Float status LEDs provide tank level indications(High Level – red, Pump Lag Start – yellow, Pump Start Level – green, Pump Stop Level – green)
  14. Green Pump Run LED provides indication when pump is called to run
  15. Pump Hand/Run button operates the pump manually
  16. Alarm Test/Silence button
  17. Red LED alarm indication for high water
  18. Piezo audible alarm (not shown)

Features

Features:
  • NEMA 4X engineered thermoplastic enclosure with lockable latches
  • Flashing red 360° alarm beacon with horn, includes innovative touch to silence pad.
  • Float indication lights allow the user to see the status of each float and flashes should a float fail out-of-sequence.
  • Pump push to run with low level protection when activated manually
  • Includes easy access touch safe fuses
  • Timed dose control option available or can be easily retrofitted in the field
  • External capacitor kit components are installed for variety of pumps – consult factory when ordering
  • 3 year limited warranty
  • UL listed
Options:
  • Digital Interface Board (DIB)
  • Digital Display Center (DDC)

Specifications

VOLTAGE SUPPLY:

  • Pump: 230 VAC 50/60 Hz 1Ø
  • Control/Alarm: 115 VAC 60 Hz 1Ø

ENCLOSURE:

  • 14 x 12 x 6 inch (35.6 x 30.5 x 15.2 cm)
  • NEMA 4X ultraviolet stabilized thermoplastic rated for indoor/outdoor use with mounting feet

INNER DOOR:

  • molded thermoplastic

LOCKING LATCHES (2):

  • stainless steel, padlockable

FLOAT CONTROL VOLTAGE:

  • 115 VAC

MOTOR STARTER:

  • IEC motor protection switches and IEC motor contactors

PUMP AMPS:

  • 0-12 Amps, 12-18 Amps, 18-24 Amps

ALARM HORN:

  • 83-85 decibel rating

FLASHING RED LED ALARM LIGHT 360°
