RK Series™ Three Phase Simplex Control Panel

Three Phase, Simplex Demand Float Control System for Pumping Applications

rk series three phase simplex control panel diagram

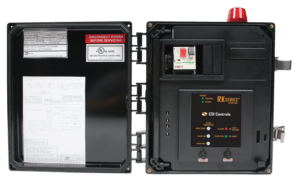

The RK Series™ Three Phase Simplex panel is designed to control one 208/230/460 VAC three phase pump in water and sewage installations. The protective inner door features panel operating status indicators, control buttons and provides access to the pump and control circuit breakers.

COMPONENTS

  1. NEMA 4X enclosure rated for indoor or outdoor use
  2. Lockable latches for added safety
  3. 360° red alarm beacon for visual alert
  4. Motor protective switch provides the adjustable overload, branch circuit protection, and pump disconnect
  5. IEC motor contactor controls the pump motor load by switching the electrical lines
  6. Multitap transformer (208/230/460 VAC primary) provides 120 VAC control/alarm voltage
  7. Primary transformer voltage fuses provides transformer short circuit protection
  8. Terminal strip field wiring of incoming power, floats, and pump
  9. Ground lugs
  10. Molded inner door protects from high voltage, and mounting location for indicators, control buttons, and controller circuit board
  11. Green LEDs provides power indication for control and alarm circuit power
  12. Red LEDs provide indication when either control or alarm fuse is blown
  13. Float status LEDs provide tank level indication and float out-of-sequence detection (High Level – red, Pump Start Level – yellow, Pump Stop Level – green)
  14. Green Pump Run LED provides indication when pump is called to run
  15. Pump Hand/Run button operates the pump manually
  16. Alarm Test/Silence button
  17. Red LED alarm indication for high water
  18. Piezo audible alarm

Features

Features:
  • NEMA 4X engineered thermoplastic enclosure with lockable latches
  • Flashing red 360° alarm beacon with horn, includes innovative touch to silence pad.
  • Float indication lights allow the user to see the status of each float and flashes should a float fail out-of-sequence.
  • Pump push to run with low level protection when activated manually
  • Includes easy access touch safe fuses
  • Timed dose control option available or can be easily retrofitted in the field
Options:
  • Digital Interface Board (DIB)
  • Digital Display Center (DDC)

Specifications

VOLTAGE SUPPLY:

  • 208/230/460 VAC 60 Hz 3Ø

ENCLOSURE:

  • 12 x 10 x 6 inch (30.5 x 25.4 x 15.2 cm)
  • NEMA 4X ultraviolet stabilized thermoplastic rated for indoor/outdoor use with mounting feet

INNER DOOR:

  • molded thermoplastic

LOCKING LATCHES (2):

  • stainless steel, padlockable

FLOAT CONTROL VOLTAGE:

  • 115 VAC

MOTOR STARTER:

  • IEC motor protection switch and IEC motor contactor

PUMP AMPS:

  • 1-32 Amps

ALARM HORN:

  • 83-85 decibel rating

FLASHING RED LED ALARM LIGHT 360°
